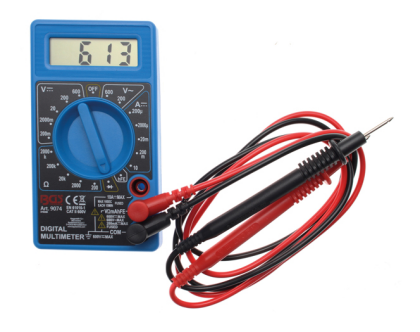

- Digital multimeter
- suitable for measurements in the CAT II range
- 3 1/2 digits, 7 segments, 12.5 mm LCD
- Display for overflow, polarity and low battery voltage
- Measuring ranges for resistance, AC voltage, DC voltage, diode voltage drop and hFE transistor measurements
DC voltage measuring ranges:
200 mV, resolution 10 µV, accuracy +/- 0.5 % +10 digit
2000 mV, resolution 1 mV, accuracy +/- 1 % +5 digit
20 V, resolution 10 mV, accuracy +/- 1 % +5 digit
200 V, resolution 100 mV, accuracy +/- 1 % +5 Digit
600 V, resolution 1 V, accuracy +/- 1.2 % +5 Digit
AC voltage measuring ranges:
200 V, resolution 10 mV, accuracy +/- 0.5 % +10 digit
600 V, resolution 1 V, accuracy +/- 0.5 % +10 Digit
Direct current measuring ranges:
200 uA, resolution 100 nA, accuracy +/- 1.8 % +2 digit
2000 uA, resolution 1 µA, accuracy +/- 1.8 % +2 digit
20 mA, resolution 10 μA, accuracy +/- 1.8 % +2 digit
200 mA , resolution 100 μA , accuracy +/- 2 % +2 Digit
10 A, resolution 10 mA , accuracy +/- 2 % +10 Digit
Resistance measuring ranges:
200 Ohm, resolution 0.1 mOhm, accuracy +/-1 % +10 Digit
2000 Ohm, resolution 1 Ohm, accuracy +/-2 % +4 Digit
20 KOhm, resolution 10 Ohm, accuracy +/-2 % +4 Digit
200 KOhm, resolution 100 Ohm, accuracy +/-2 % +4 Digit
2000 KOhm, resolution 1 KOhm, accuracy +/-2 % +4 Digit
